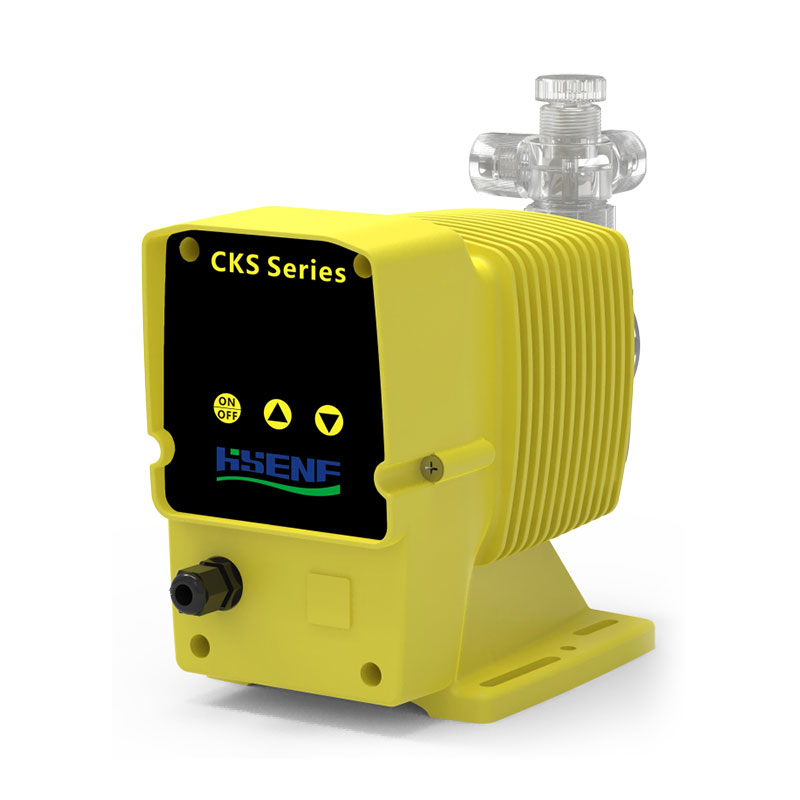

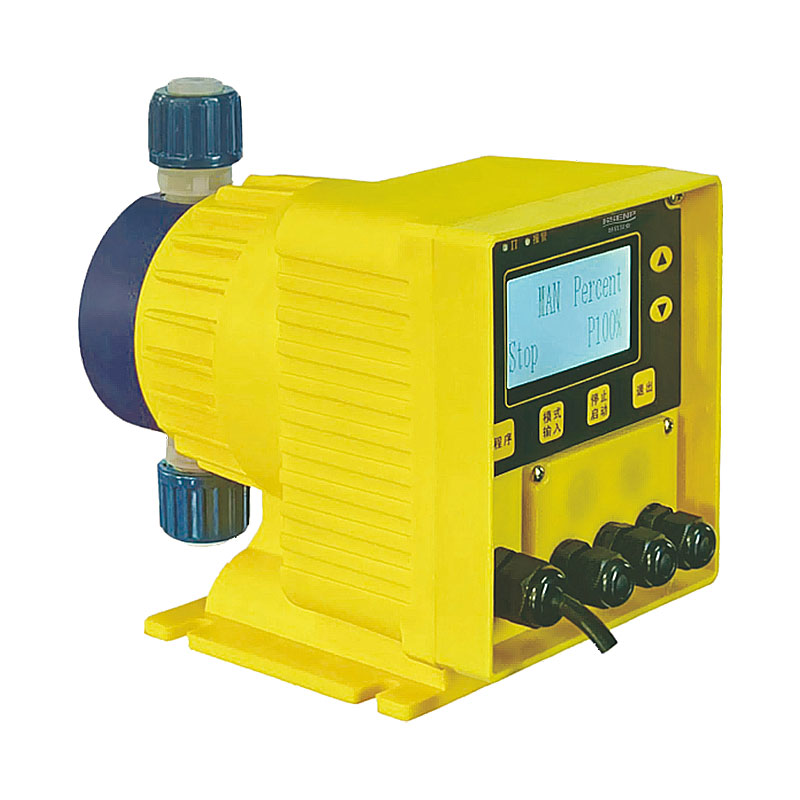

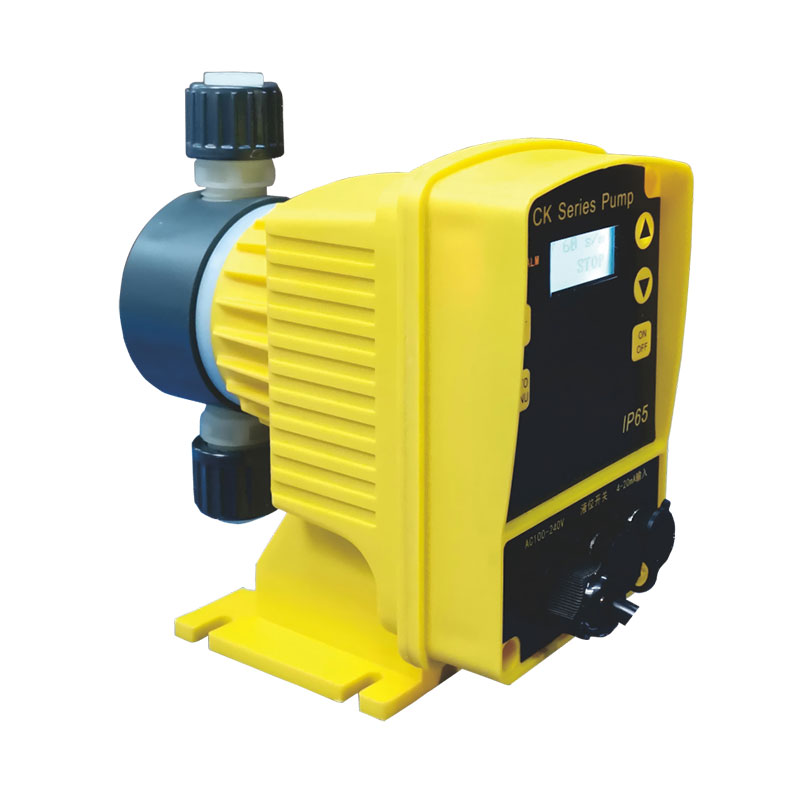

Main Features:
Modular structural design of the product, between the hydraulic end module, electromagnetic power module, and electronic control module
Implement module isolation and excellent heat dissipation.
The electromagnetic coil adopts full plastic sealing and one-piece molding process, with stable and reliable dynamic force.
The imported material PTFE+EPDM composite diaphragm has superior overall toughness and weather resistance,
Ensure precise measurement process and extend the lifespan of the entire pump.
Can adapt to wide voltage usage and meet the voltage requirements of different countries.
The entire series comes standard with an LCD display screen for stable and precise control.
High speed frequency of 360 times/min, stable operation,
The pipeline has minimal pulsation and overall vibration is extremely low.
Configure an exhaust valve for convenient and efficient use.
Multiple pump head materials are available for selection, and the entire machine is made of high-quality plastic, with rich application scenarios.
Main Applications
Oil, chemical, power, metallurgy, mining, shipbuilding, light industry, agriculture, water treatment, etc.
Technical Parameter
CKS Model Identification Codes
Description | Series | Flow | Liquid End | Connection | Motor |
ID Code |
Series
Code | Description |
CKSS | Manual control series |
CKSP | Manual/digital pulse signal control series, with liquid level connection |
CKSZ | Manual/4-20mA signal control series, with liquid level connection |
Flow
Model | Max Flow (L/h) | Max. Pressure (bar) |
SPM | Voltage (V) | Frequency (Hz) | Power (W) | Air Vent Valve (PVC head only) |
CKSS03 CKSP03 CKSZ03 | 2.3 |
10 |
360 |
100- 240AC |
50/60 |
20 |
√ |
CKSS04 CKSP04 CKSZ04 |
4.4 |
7 | |||||
CKSS06 CKSP06 CKSZ06 |
6 |
4 | |||||
CKSS12 CKSP12 CKSZ12 |
12.2 |
2 |
× | ||||
CKSS05 CKSP05 CKSZ05 |
4.9 |
10 |
24 |
√ | |||
CKSS08 CKSP08 CKSZ08 |
7.8 |
7 | |||||
CKSS16 CKSP16 CKSZ16 |
16.4 |
4 |
× | ||||
CKSS24 CKSP24 CKSZ24 |
24.2 |
2 |
Flow Rated Under Different Pressure
Code | 0bar | 2bar | 4bar | 6bar | 7bar | 8bar | 10bar |
03 | 5.4 | 3.4 | 3.2 | 3 | 2.9 | 2.7 | 2.3 |
04 | 6.3 | 5.4 | 5 | 4.5 | 4.4 | 3.7 | |
06 | 8.4 | 6.6 | 6 | 5.8 | |||
12 | 14.5 | 12.2 | |||||
05 | 8.7 | 6.6 | 6.3 5.9 5.7 5.5 | ||||
08 | 14.7 | 8.7 | 8.6 | 8.1 | 7.8 | 7.7 | |
16 | 23.6 | 18.8 | 16.4 | ||||
24 | 27.5 | 24.2 | |||||
Liquid End Material
Code | Liquid End | Valve Ball | Valve Seat | Valve Body | O Ring | Gasket | Diaphragm |
P | PVC | Ceramic | FPM | PVC | FPM | PTFE | PTFE+EPDM |
PVC | Ceramic | EPDM | PVC | EPDM | |||
T | PVDF | Ceramic | PTFE | PVDF | PTFE | ||
S | SS316 | SS316 | SS316 | SS316 | PTFE |
Connection
Code | Description | Model | PVC | PVDF | SS316 | ||
Inlet | Outlet | Inlet | Outlet | ||||
R | Hose Connection | 03-08 | PVC 4*6mm Hose | PE 4*6mm Hose | PTFE 4*6mm Hose | / | |
12-24 | PVC 8*13mm Hose | PTFE 8*10mm Hose | |||||
P | Thread Connection | 03-24 | / | NPT 1/4”F | |||
Note: PVC&PVDF with accessories kit( including foot valve/injection valve/3m inlet hose/3m outlet hose)

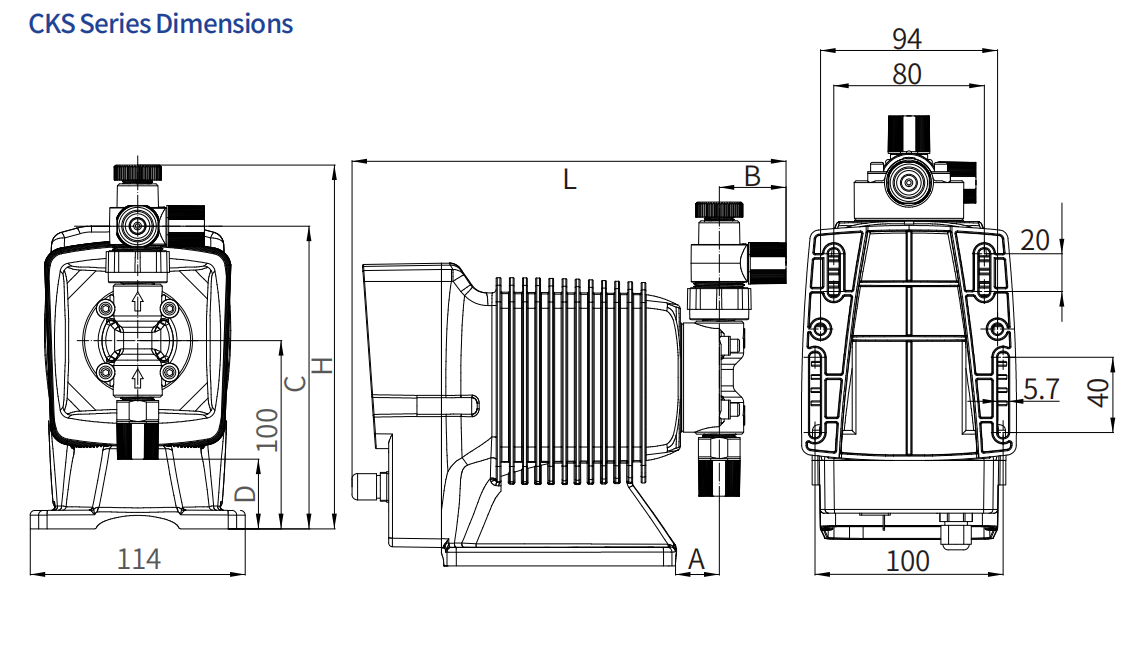

Unit: mm
Model | H | L | A | B | C | D | Connection |
03 | 193 | 230 | 23 | 35 | 160 | 37 | Ø4*6 |
04 | |||||||
05 | |||||||
06 | Ø4*6 | ||||||
08 | |||||||
12 | 182 | 214 | 25 | 17 | / | 20 | Ø8*13 |
16 | |||||||
24 |
Note: For PVC head only. PVDF and SS head dimension contact us on request.
