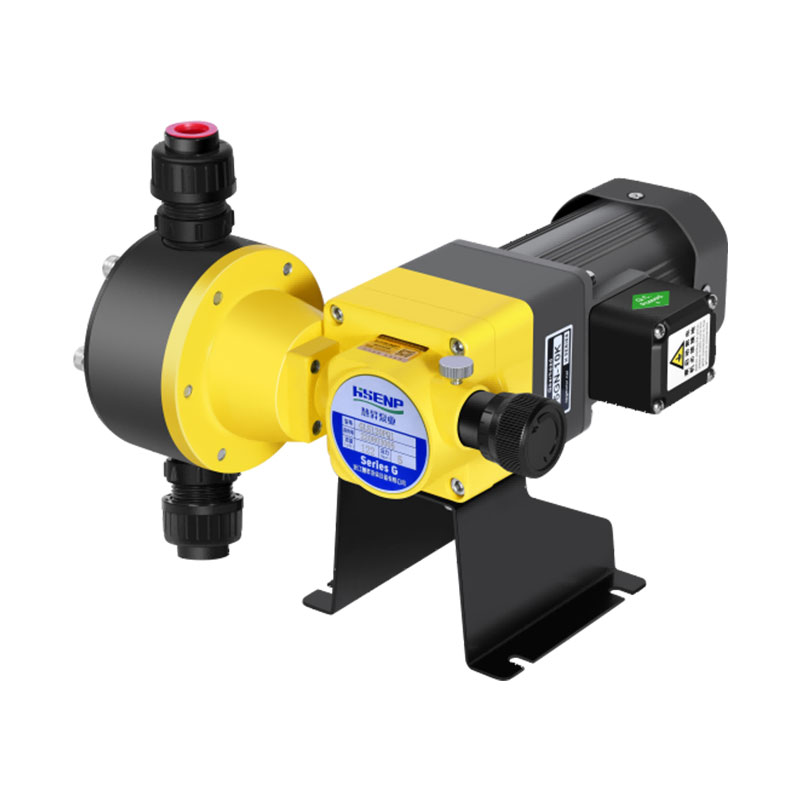

GLS

Main performance parameters

Max flow rate：152L/h

Max discharge pressure：12bar

Adjustment range：30% -100% Steady-state accuracy：±1%

Main features    Max suction lift height：1.5m

Main Features

Liquid End

1. The stable and reliable adjustment and adjustment locking structure ensure the stability of the pump .

2. Multiple pump head materials such as PVC, PVDF, 316SS, etc. are available, suitable for conveying various materials.

3. Self-clean check valve design

Drive End

1. The reducer drives the eccentric mechanism to ensure smooth flow transmission.

2. Enhanced structural design, suitable for harsh operating environments.

3. Using special bearings and supports, lubricated with grease, the work is smooth, reliable, low-noise, and has low maintenance costs.

Control Mode

Power supply: 380V/220V -50Hz/60Hz/three-phase/single-phase

The inverter controller controls the three-phase motor in an "on/off" manner and adjusts the output flow rate

Main Application

Environmental protection, petrochemicals, chemicals, refining, electricity,metallurgy, pharmaceuticals, chemicals, wastewater treatment, and other fields.

Technical Parameter

GLS Model Identification Codes

Series

Flow

Liquid End

Main Components of Liquid End

Note:

1. GLS015-060 valve ball is equipped with zirconia material ceramic by default; GLS070-150 valve ball is equipped with high borosilicate material ceramic by default.

2. GLS015-060 PVC High Viscosity defaults to INCONEL600 material spring;

GLS070-150 PVC High Viscosity defaults to Hastelloy C material spring.

3. * is optional.

Connection

Note:

1. Red part is standard configuration.

2. GLS015-GLS060 PVC hose connection with accessories kit( including 6m PVC hose).

3. GLS070-GLS150 PVDF hose connection not offer hose and other accessories.

Motor

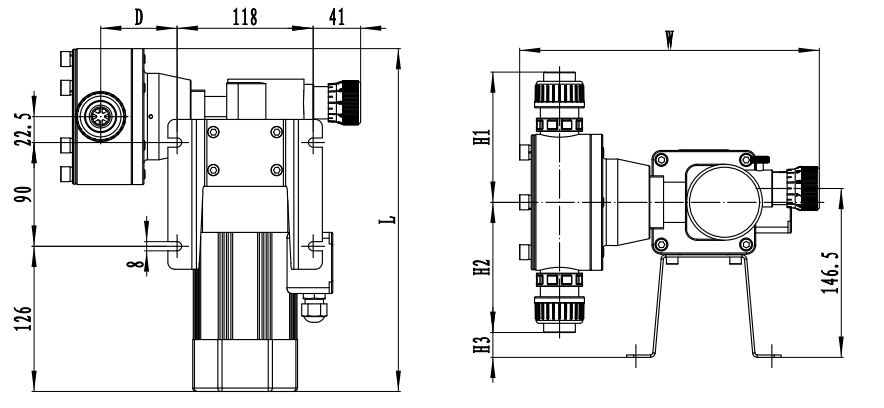

GLS Dimension
