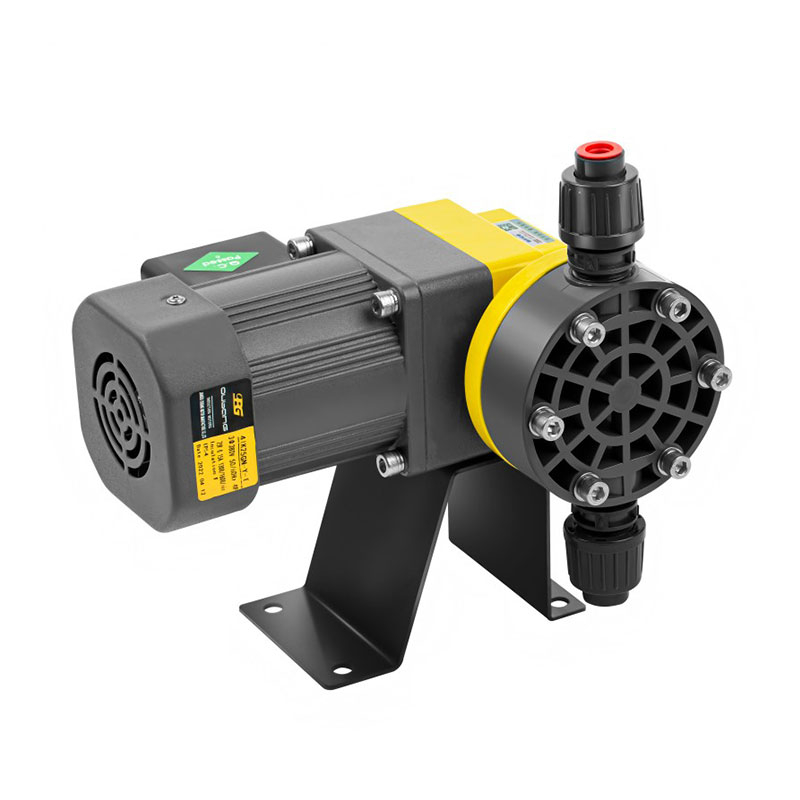

Main performance parameters
Max flow rate：58L/h
Max discharge pressure：10bar
Adjustment range：30% -100% Steady-state accuracy：±1%
Main features Max suction lift height：1.5m
Main Features
Liquid End
1. The stable and reliable adjustment and adjustment locking structure ensure the stability of the pump .
2. Multiple pump head materials such as PVC, PVDF, 316SS, etc. are available, suitable for conveying various materials.
3. Self-clean check valve design
Drive End
1. The reducer drives the eccentric mechanism to ensure smooth flow transmission.
2. Enhanced structural design, suitable for harsh operating environments.
3. Using special bearings and supports, lubricated with grease, the work is smooth, reliable, low-noise, and has low maintenance costs.
Control Mode
Power supply: 380V/220V -50Hz/60Hz/three-phase/single-phase
The inverter controller controls the three-phase motor in an "on/off" manner and adjusts the output flow rate
Main Application
Environmental protection, petrochemicals, chemicals, refining, electricity,metallurgy, pharmaceuticals, chemicals, wastewater treatment, and other fields.
Technical Parameter
GSS Model Identification Codes
Description | Series | Flow | Liquid End | Connection |
ID Code |
Series
Code | Description |
GSS | GSS series mechanical diaphragm pump |
Flow
Model | Max Flow (L/h) | Stroke Speed (SPM) | Max Pressure (bar) | Stroke Length (mm) | Diaphragm (mm) | Power (W) |
GSS001 | 1.1 | 166 | 10 | 1.2 | 38.5 | 25 |
GSS002 | 2.2 | 166 | 10 | 4 | 60 | |
GSS003 | 4.5 | 20 | 10 | |||
GSS005 | 6 | 30 | 10 | |||
GSS010 | 13 | 50 | 10 | |||
GSS025 | 24 | 83 | 7 | |||
GSS030 | 30 | 100 | 7 | |||
GSS035 | 36 | 120 | 5 | |||
GSS045 | 46 | 150 | 4 | |||
GSS055 | 53 | 166 | 2 | |||
GSS060 | 58 | 166 | 2 |
Liquid End
Code | Description |
P | PVC liquid end |
S | SS316 liquid end |
T | PVDF liquid end |
Z | Other special material on request |
Main Components of Liquid End
GSS001-GSS002 | ||||||
Liquid End | Pump Head | Valve Body | Valve Seat | Valve Ball | Diaphragm | O Ring |
PVC | PVC | PVC | EPDM/FPM*/PTFE* | Ceramic | Composite PTFE | EPDM/FPM* |
PVDF | PVDF | PVDF | EPDM/FPM*/PTFE* | Ceramic | Composite PTFE | EPDM/FPM* |
Note: * is optional.
GSS003-GSS060 | ||||||
Liquid End | Pump Head | Valve Body | Valve Seat | Valve Ball | Diaphragm | O Ring |
PVC | PVC | PVC | PVDF | Ceramic | Composite PTFE | FPM/EPDM*/Coated PTFE* |
PVDF | PVDF | PVDF | PVDF | Ceramic | Composite PTFE | FPM/EPDM*/Coated PTFE* |
SS316 | SS316 | SS316 | SS316 | SS316 | Composite PTFE | FPM/EPDM*/Coated PTFE* |
Note: * is optional.
Connection
Code | Description | GSS001-GSS002 | GSS003-GSS060 | |||||
PVC | PVDF | PVC | PVDF | SS316 | ||||
Inlet | Outlet | Inlet | Outlet | |||||
P | NPT thread | / | / | / | 1/2” F | 1/2” F | 1/2” F | |
Q | Glue Union | / | / | / | DN15 | / | / | |
R | Hose | PVC 4*6mm Hose | PE 4*6mm Hose | PTFE 4*6mm Hose | PVC 6*12mm Hose | 6.35*9.52mm Hose | / | |
X | Others | On request | ||||||
Note:
1. Red part is standard configuration.
2. GSS001-GSS002 PVC with accessories kit( including foot valve/injection valve/3m inlet PVC hose/3m outlet PE hose).
3. GSS001-GSS002 PVDF with accessories kit( including foot valve/injection valve/3m inlet PTFE hose/3m outlet PTFE hose).
4. GSS003-GSS060 PVC Hose connection with accessories kit( including foot valve/injection valve/6m PVC hose/Ceramic weight).
5. GSS003-GSS060 PVDF not offer hose and other accessories.
Motor
Code | Description |
1 | 25W 380V 50Hz 3PH /1440rpm/IP54/F |
2 | 25W 220V 50Hz 1PH /1440rpm/IP54/F |
3 | Others on request |

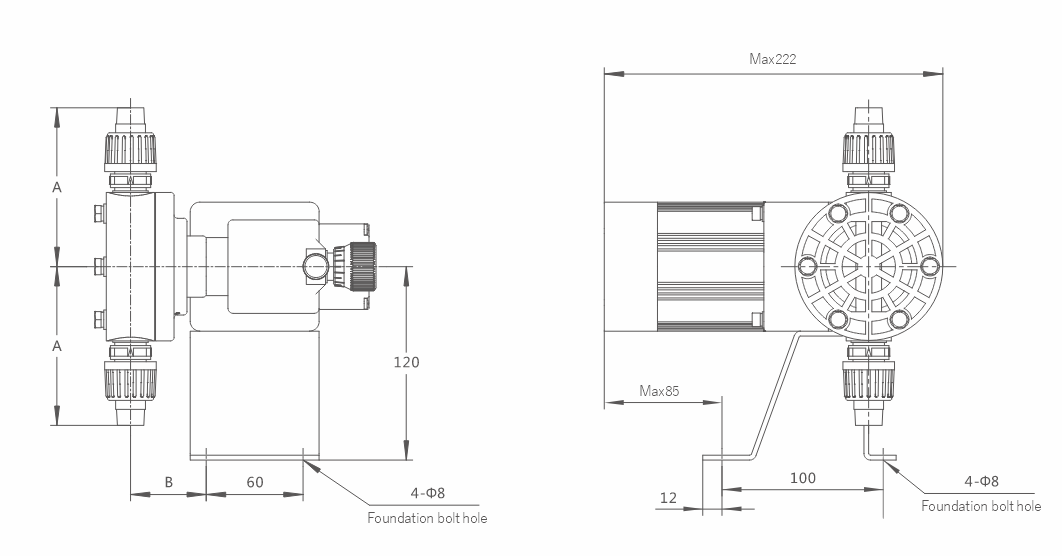

GSS Dimension
GSS001-GSS002 | |||
Pump head | Pump Code | A(mm) | B(mm) |
PVC | R | 83.5 | 2 |
PVDF | R | 83.5 | 2 |
GSS003-GSS060 | |||
Pump head | Pump Code | A(mm) | B(mm) |
PVC | P | 125 | 47 |
Q | 125 | ||
R | 99 | ||
PVDF | P | 94 | 47 |
R | 99 | ||
SS316 | P | 99 | 48 |
