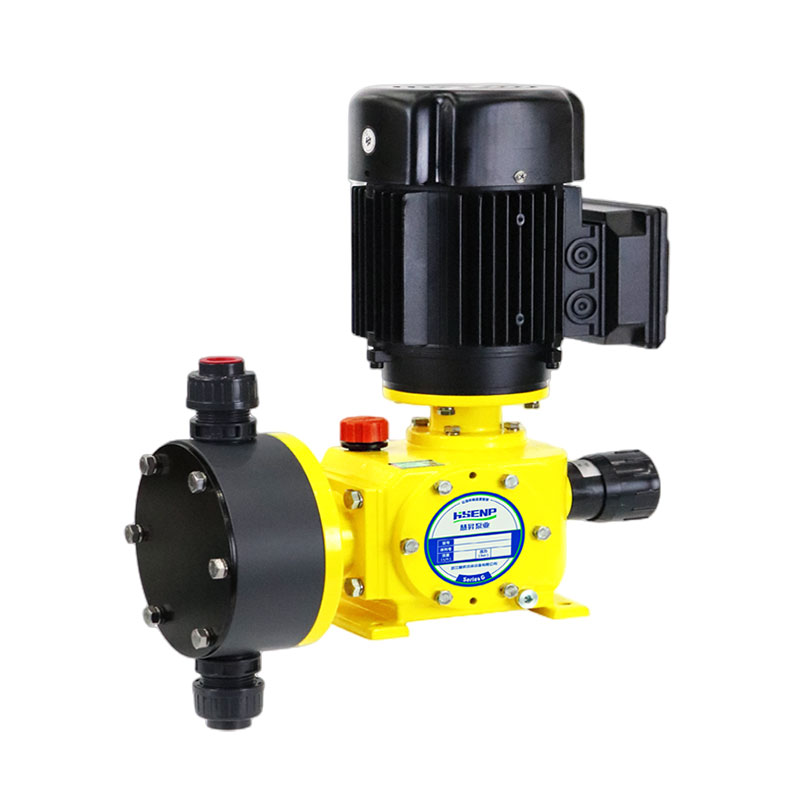

Main performance parameters
Max flow rate:500L/h
Max discharge pressure:7bar
Adjustment range:30% -100% Steady-state accuracy:±1%
Main features Max suction lift height:2m
Main Features
Liquid End
1. The mechanical drive diaphragm adopts a multi-layer composite structure of PTFE and elastic rubber, which has the characteristics of no leakage and durability.
2. There is no diaphragm protective plate on the material side, which facilitates the passage of materials.
3. Multiple pump head materials such as PVC, PVDF, 316SS, etc. are available, suitable for conveying various materials.
4. Self-clean check valve design
Drive End
1. Adopting a reliable dual cam structure, suitable for various harsh working conditions,
2. Enhanced structural design, suitable for harsh operating environments.
3. Wear resistant ball bearings make work more stable.
4. Oil bath lubrication prolongs the working life of driving components.
5. The flow can be adjusted in both shutdown and operation states, and the adjustment method can be manual or variable frequency.
Control Mode
Power supply: 380V/three-phase, 220V/single-phase, 220V/three-phase: 50Hz/60Hz
The switch controller controls the motor in a "on/off" mode and adjusts the flow output with a handle.
By installing a variable frequency controller to receive external control signals, the stroke speed can be adjusted,
Power supply: 380V/three-phase, 220V/single-phase, 50Hz,
Input signal: 4—20mA analog signal
Main Application
Environmental protection, petrochemicals, chemicals, refining, electricity,metallurgy, pharmaceuticals, chemicals, wastewater treatment, and other fields.
Technical Parameter
GTS Model Identification Codes
Description | Series | Flow | Liquid End | Connection | Motor | Base |
ID Code |
Series
Code | Description |
GTS | GTS series Mechanical Diaphragm Pump |
Flow
Code | Max Flow (L/h) | Stroke Speed | Max Pressure | Power |
GTS0090 | 98 | 36 | 7 | 0.25(ordinary 3PH) 0.37(1PH/VF/EX) |
GTS0120 | 128 | 72 | ||
GTS0170 | 187 | 72 | ||
GTS0240 | 248 | 144 | ||
GTS0330 | 322 | 180 | 5 | |
GTS0400 | 403 | 144 | 0.37 | |
GTS0500 | 500 | 180 |
Liquid End
Code | Description |
P | PVC liquid end |
S | SS316 liquid end |
T | PVDF liquid end |
F | Sodium hypochlorite application: PVC liquid end with EPDM O ring |
V | High viscosity application: PVC liquid end |
Z | Other special material on request |
Main Components of Liquid End
Liquid End | Pump Head | Valve Body | Valve Seat | Valve Ball | Diaphragm | O Ring |
PVC | PVC | PVC | PVDF | Ceramic | Composite PTFE | FPM/EPDM*/Coated PTFE* |
PVDF | PVDF | PVDF | PVDF | Ceramic | Composite PTFE | FPM/EPDM*/Coated PTFE* |
SS316 | SS316 | SS316 | SS316 | SS316 | Composite PTFE | FPM/PTFE/EPDM*/Coated PTFE* |
Note: * is optional.
Connection
Code | Description | GTS0090-0500 | ||
PVC | PVDF | SS316 | ||
P | NPT thread | 1/2” F | 1/2” F | 1/2” F |
Q | Glue Union | DN15 | / | / |
R | Hose | 20*28mm Hose | / | / |
X | Others | On request | ||
Note:
1. Red part is standard configuration.
2. Hose connection not offer hose and other accessories.
Motor
Code | Description |
1 | 0.25kW,IEC71,3PH 380V,50Hz,1440rpm,IP55/F |
2 | 0.37kW,IEC71,3PH 380V,50Hz,1440rpm,IP55/F |
3 | 0.37kW,IEC71,1PH 220V,50Hz,1440rpm,IP55/F |
4 | 0.37kW,IEC71,EX motor, 3PH 380V,50Hz,1440rpm,IP55/F,dllBT4 |
5 | 0.37kW,IEC71, VF motor, 3PH 380V,50Hz,1440rpm,IP55/F,IC416 |
6 | Without motor, pump motor base flange IEC71 |
7 | Other motor on request |
Base
Code | Description |
N | Without pump base (standard) |
Y | With pump base |

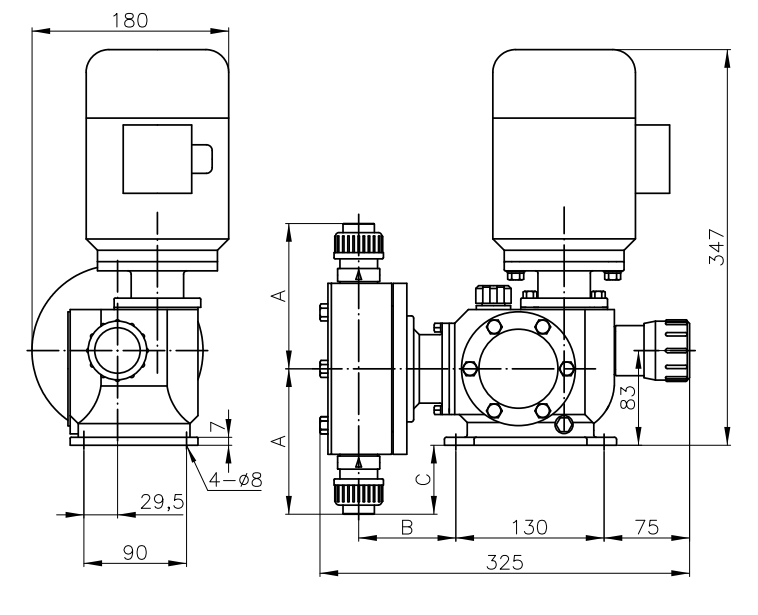

GTS Dimension
GTS0090-0500 | ||||
Material | Code | A ( mm ) | B(mm) | C(mm) |
PVC | P | 128 | 86 | 61 |
Q | ||||
PVDF | P | |||
SS316 | P | 133 | 66 | |
