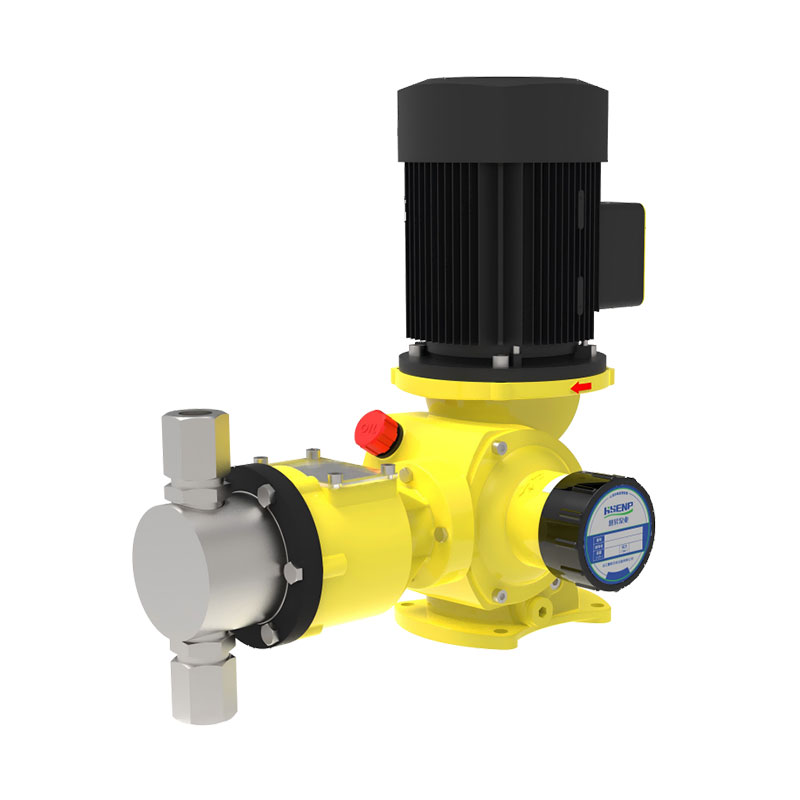

JLS

Main performance parameters

Maximum flow rate: 240L/h

Maximum discharge pressure: 13Mpa

Adjustment range: 10% -100%, steady-state accuracy ± 1%

Suction and lifting height : 2.5m

Medium temperature:- 10°C~ 100°C

The maximum ambient temperature is+40 ° C

Main Features

1. Sturdy and compact design, small pump head volume.

2. The plunger directly acts on the compression medium, with high volumetric efficiency and less transmission loss at high pressure.

3. Suitable for high-pressure application, suitable for conveying media without solid particles, capable of conveying high viscosity media. It is not recommended to use it when transporting corrosive slurries and flammable and explosive hazardous chemicals.

4. Variable eccentric adjustment mechanism ensures flow regulation accuracy and smooth flow changes.

5. Adopting a multi pass combination sealing structure of "graphite fiber+step seal" with excellent wear resistance and corrosion resistance.

Control Mode

Power supply: 380V/three-phase, 220V/single-phase, 220V/three-phase, 50Hz/60Hz.

By installing a variable frequency controller to receive external control signals, the stroke speed can be adjusted.

Input signal: 4-20mA analog signal.

The switch controller controls the three-phase motor in an "on/off" manner to regulate the output flow rate.

Main Application

Various fields such as oil and chemical industry, chemical industry, electricity, metallurgy, etc., especially in high-precision and high-pressure fields

Technical Parameter

Main Components of Liquid End

Note: * is optional.

Model Identification Codes

Series

Flow

Liquid End

Connection

Motor

Adjust

Base

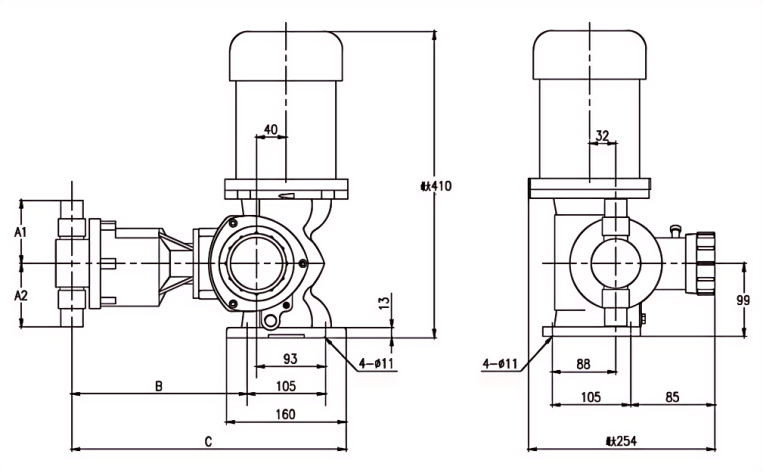

JBS serial Dimension
