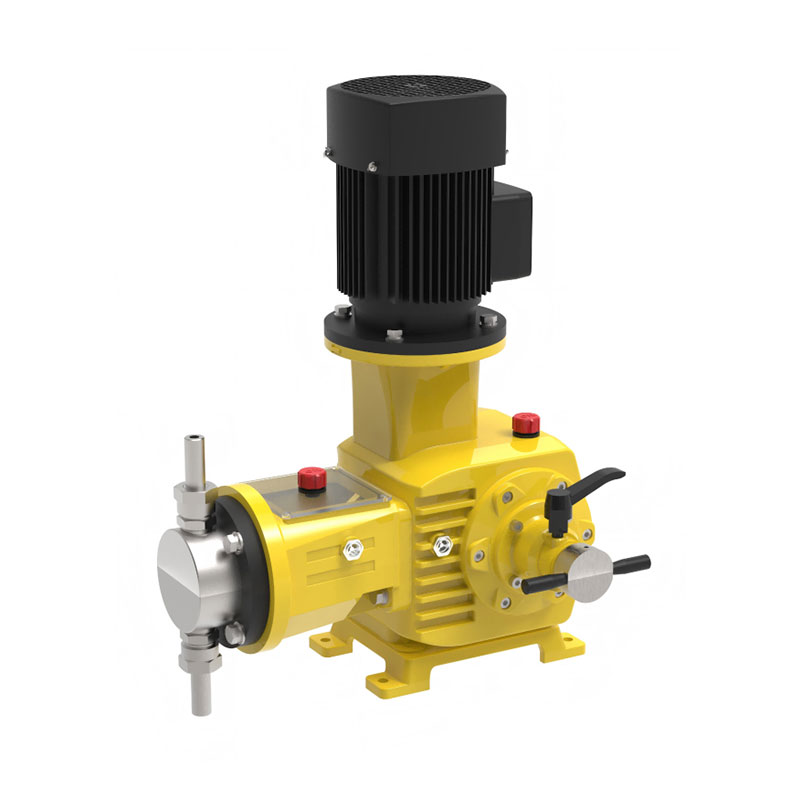

Main performance parameters
Max flow rate:1200L/h
Max discharge pressure: 500bar
Adjustment range:10% -100% Steady-state accuracy:±1%
Max suction lift height:2.5m
Main Features
1. The high-strength ceramic plunger ensures superior wear resistance and ultra long lifespan.
2. The leakage resistance performance far exceeds the national standard, due to the combination sealing structure.
3. The plunger directly acts on the medium, and the pump has high volumetric efficiency, ensuring precise flow at different pressures
measurement.
4. High measurement accuracy, steady-state accuracy can reach ± 1%
5. The anti loosening adjustment lock structure design ensures that the pump has ultra-high stability accuracy.
6. The design features high-precision adjustable structure, ensuring the pump has ultra-high reproducibility.
7. The modular design provides versatile adaptability to various working conditions, including vertical, horizontal, and multi connected pump bodies.
8. Durable and compact design, small pump head volume, with optimizable connections.
9. Suitable for high-pressure environments and capable of transporting high viscosity media.
Control Mode
Power supply: 380V/three-phase, 220V/single-phase, 220V/three-phase, 50Hz/60Hz.
By installing a variable frequency controller to receive external control signals, the stroke speed can be adjusted.
Input signal: 4-20mA analog signal.
The switch controller controls the three-phase motor in an "on/off" manner to regulate the output flow rate.
Main Application
Various fields such as oil and chemical industry, chemical industry, electricity, metallurgy, etc., especially in high-precision and high-pressure fields
Technical Parameter
Main Components of Liquid End
Liquid End | Pump Head | Valve Body | Valve Seat | Valve Ball | Plunger | Packing Seal | O Ring |
SS316 | SS316 | SS316 | SS316 | SS304/ Ceramic | SS316+ Ceramic | graphite fiber+ step-seal | FPM/PVDF/EPDM*/Coated PTFE* |
SS304 | SS304 | SS304 | SS304 | SS304/ Ceramic | SS316+ Ceramic | graphite fiber+ step-seal | FPM/PVDF/EPDM*/Coated PTFE* |
Note: * is optional.
Model Identification Codes
Description | Series | Flow | Liquid End | Connection | Motor |
ID Code |
Series
Code | Description |
JXS | JXS series plunger metering pump |
Flow
Code | Max Flow | Max Pressure | Power | Plunger | SPM |
JXS1200/0.7 | 1200 | 0.7 | 1.5 | 100 | 130 |
JXS1200/0.5 | 0.5 | 1.1 | |||
JXS1100/0.8 | 1100 | 0.8 | 1.5 | 95 | |
JXS1100/0.6 | 0.6 | 1.1 | |||
JXS960/0.9 | 960 | 0.9 | 1.5 | 90 | |
JXS960/0.7 | 0.7 | 1.1 | |||
JXS960/0.5 | 0.5 | 0.75 | |||
JXS860/1.1 | 860 | 1.1 | 1.5 | 85 | |
JXS860/0.8 | 0.8 | 1.1 | |||
JXS860/0.5 | 0.5 | 0.75 | |||
JXS760/1.2 | 760 | 1.2 | 1.5 | 80 | |
JXS760/0.9 | 0.9 | 1.1 | |||
JXS760/0.6 | 0.6 | 0.75 | |||
JXS650/1.4 | 650 | 1.4 | 1.5 | 75 | |
JXS650/1.0 | 1.0 | 1.1 | |||
JXS650/0.7 | 0.7 | 0.75 | |||
JXS570/1.6 | 570 | 1.6 | 1.5 | 70 | |
JXS570/1.1 | 1.1 | 1.1 | |||
JXS570/0.8 | 0.8 | 0.75 | |||
JXS490/1.8 | 490 | 1.8 | 1.5 | 65 | |
JXS490/1.3 | 1.3 | 1.1 | |||
JXS490/0.9 | 0.9 | 0.75 | |||
JXS410/2.1 | 410 | 2.1 | 1.5 | 60 | |
JXS410/1.6 | 1.6 | 1.1 | |||
JXS410/1.1 | 1.1 | 0.75 | |||
JXS360/2.4 | 360 | 2.4 | 1.5 | 56 | |
JXS360/1.8 | 1.8 | 1.1 | |||
JXS360/1.2 | 1.2 | 0.75 | |||
JXS280/3.1 | 280 | 3.1 | 1.5 | 50 | |
JXS280/2.2 | 2.2 | 1.1 | |||
JXS280/1.5 | 1.5 | 0.75 | |||
JXS230/3.8 | 230 | 3.8 | 1.5 | 45 | |
JXS230/2.8 | 2.8 | 1.1 | |||
JXS230/1.9 | 1.9 | 0.75 | |||
JXS180/4.8 | 180 | 4.8 | 1.5 | 40 | |
JXS180/3.5 | 3.5 | 1.1 | |||
JXS180/2.4 | 2.4 | 0.75 | |||
JXS140/6.2 | 140 | 6.2 | 1.5 | 35 | |
JXS140/4.6 | 4.6 | 1.1 | |||
JXS140/3.1 | 3.1 | 0.75 | |||
JXS100/8.5 | 100 | 8.5 | 1.5 | 30 | |
JXS100/6.2 | 6.2 | 1.1 | |||
JXS100/4.2 | 4.2 | 0.75 | |||
JXS70/12 | 68 | 12 | 1.5 | 25 | |
JXS70/8.8 | 70 | 8.8 | 1.1 | ||
JXS70/6 | 70 | 6 | 0.75 | ||
JXS55/15.8 | 51 | 15.8 | 1.5 | 22 | |
JXS55/11.7 | 52 | 11.7 | 1.1 | ||
JXS55/8 | 54 | 8 | 0.75 | ||
JXS45/19 | 41 | 19 | 1.5 | 20 | |
JXS45/13.9 | 42 | 13.9 | 1.1 | ||
JXS45/9.5 | 45 | 9.5 | 0.75 | ||
JXS35/23.5 | 33 | 23.5 | 1.5 | 18 | |
JXS35/17 | 34 | 17 | 1.1 | ||
JXS35/12 | 35 | 12 | 0.75 | ||
JXS25/34 | 21.5 | 34 | 1.5 | 15 | |
JXS25/25 | 22.5 | 25 | 1.1 | ||
JXS25/17 | 23.5 | 17 | 0.75 | ||
JXS20/38 | 18.3 | 38 | 1.5 | 14 | |
JXS20/28 | 19.7 | 28 | 1.1 | ||
JXS20/19 | 20.4 | 19 | 0.75 | ||
JXS15/50 | 12.4 | 50 | 1.5 | 12 | |
JXS15/36 | 13.8 | 36 | 1.1 | ||
JXS15/25 | 14.6 | 25 | 0.75 | ||
JXS10/50 | 8.6 | 50 | 1.5 | 10 | |
JXS10/36 | 9.6 | 36 | 1.1 | ||
JXS10/25 | 10.2 | 25 | 0.75 |
Liquid End
Code | Description |
S | SS304 |
L | SS316 |
Z | Others on request |
Connection
Code | Description | JXS10-70 | JXS100-410 | JXS490-960 | JXS1100-1200 | |
P | NPT thread | 1/2"M | 1/2"F | 1’’ M | 1.5” M | |
F | Flange | DN15 | DN20 | DN25 | DN40 | |
K | Welding Union | DN15 | ------ | ------ | ------ | ------- |
X | Others on request | |||||
Motor
Code | Description |
1 | 3PH 380V，50Hz，1440rpm，IP55/F |
2 | 1PH 220V，50Hz，1440rpm，IP55/F |
3 | Ex proof motor,3PH 380V，50Hz，1440rpm，IP55/F， Ex dⅡBT4 |
4 | VF motor, 3PH 380V，50Hz，1440rpm，IP55/F，VF Motor IC416 |
5 | Without motor, with IEC motor base |
6 | Other motor on request |
7 | Ex proof VF motor, 3PH 380V，50Hz，1440rpm，IP55/F，ExdⅡBT4，C416 |
Note: If adopt VF motor, power should be one level higher than the standard motor.

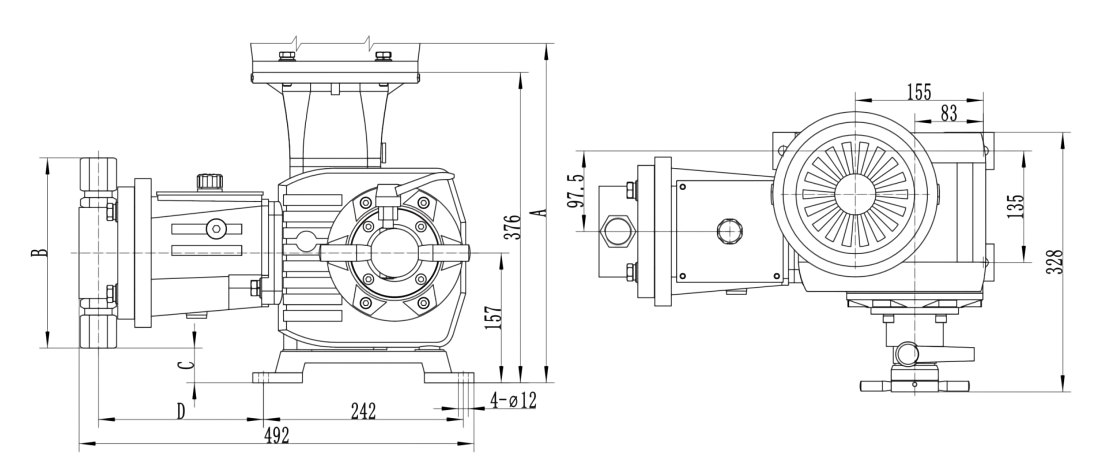

JXS serial Dimension
Code | Power(kW) | A(mm) | B(mm) | C(mm) | D(mm) |
JXS1200/0.7 | 1.5 | 100 | 423 | -54 | 199 |
JXS1200/0.5 | 1.1 | ||||
JXS1100/0.8 | 1.5 | 100 | |||
JXS1100/0.6 | 1.1 | ||||
JXS960/0.9 | 1.5 | 676 | 356 | -21 | |
JXS960/0.7 | 1.1 | 656 | |||
JXS960/0.5 | 0.75 | 636 | |||
JXS860/1.1 | 1.5 | 676 | |||
JXS860/0.8 | 1.1 | 656 | |||
JXS860/0.5 | 0.75 | 636 | |||
JXS760/1.2 | 1.5 | 676 | |||
JXS760/0.9 | 1.1 | 656 | |||
JXS760/0.6 | 0.75 | 636 | |||
JXS650/1.4 | 1.5 | 676 | |||
JXS650/1.0 | 1.1 | 656 | |||
JXS650/0.7 | 0.75 | 636 | |||
JXS570/1.6 | 1.5 | 676 | |||
JXS570/1.1 | 1.1 | 656 | |||
JXS570/0.8 | 0.75 | 636 | |||
JXS490/1.8 | 1.5 | 676 | |||
JXS490/1.3 | 1.1 | 656 | |||
JXS490/0.9 | 0.75 | 636 | |||
JXS410/2.1 | 1.5 | 676 | 224 | 45 | 200 |
JXS410/1.6 | 1.1 | 656 | |||
JXS410/1.1 | 0.75 | 636 | |||
JXS360/2.4 | 1.5 | 676 | 219 | 47.5 | |
JXS360/1.8 | 1.1 | 656 | |||
JXS360/1.2 | 0.75 | 636 | |||
JXS280/3.1 | 1.5 | 676 | 214 | 50 | |
JXS280/2.2 | 1.1 | 656 | |||
JXS280/1.5 | 0.75 | 636 | |||
JXS230/3.8 | 1.5 | 676 | 209 | 52.5 | |
JXS230/2.8 | 1.1 | 656 | |||
JXS230/1.9 | 0.75 | 636 | |||
JXS180/4.8 | 1.5 | 676 | 204 | 55 | |
JXS180/3.5 | 1.1 | 656 | |||
JXS180/2.4 | 0.75 | 636 | |||
JXS140/6.2 | 1.5 | 676 | 199 | 57.5 | |
JXS140/4.6 | 1.1 | 656 | |||
JXS140/3.1 | 0.75 | 636 | |||
JXS100/8.5 | 1.5 | 676 | 194 | 60 | |
JXS100/6.2 | 1.1 | 656 | |||
JXS100/4.2 | 0.75 | 636 | |||
JXS70/12 | 1.5 | 676 | 273 | 20.5 | 211 |
JXS70/8.8 | 1.1 | 656 | |||
JXS70/6 | 0.75 | 636 | |||
JXS55/15.8 | 1.5 | 676 | |||
JXS55/11.7 | 1.1 | 656 | |||
JXS55/8 | 0.75 | 636 | |||
JXS45/19 | 1.5 | 676 | 268 | 23 | |
JXS45/13.9 | 1.1 | 656 | |||
JXS45/9.5 | 0.75 | 636 | |||
JXS35/23.5 | 1.5 | 676 | 273 | 20.5 | |
JXS35/17 | 1.1 | 656 | |||
JXS35/12 | 0.75 | 636 | |||
JXS25/34 | 1.5 | 676 | |||
JXS25/25 | 1.1 | 656 | |||
JXS25/17 | 0.75 | 636 | |||
JXS20/38 | 1.5 | 676 | |||
JXS20/28 | 1.1 | 656 | |||
JXS20/19 | 0.75 | 636 | |||
JXS15/50 | 1.5 | 676 | |||
JXS15/36 | 1.1 | 656 | |||
JXS15/25 | 0.75 | 636 | |||
JXS10/50 | 1.5 | 676 | |||
JXS10/36 | 1.1 | 656 | |||
JXS10/25 | 0.75 | 636 |
