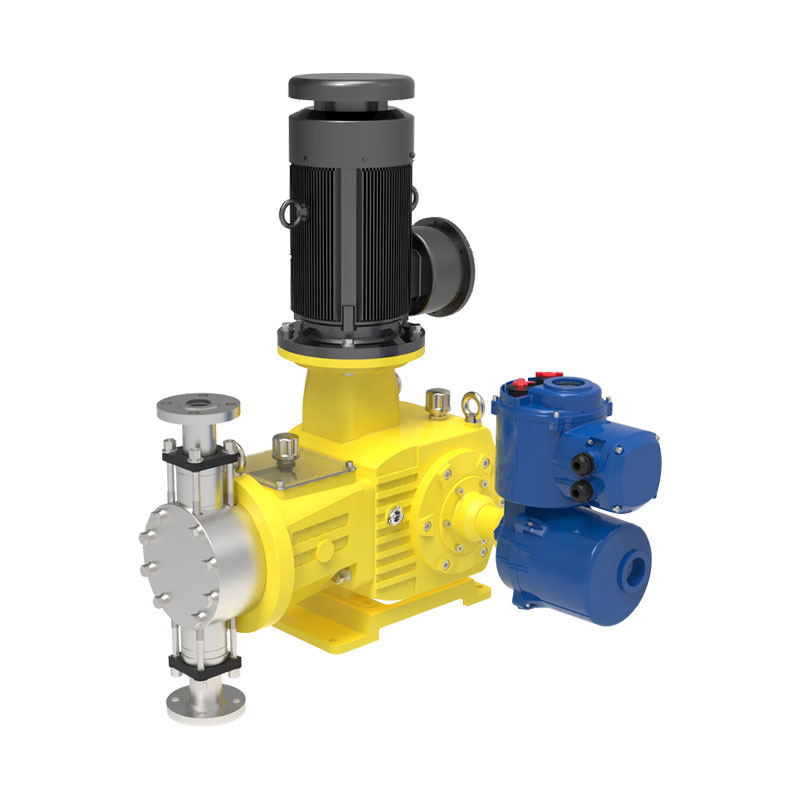

Main performance parameters
Max flow rate:2541L/h
Max discharge pressure:41.7Mpa
Adjustment range:10% -100% Steady-state accuracy:±1%
Max suction lift height:2.5m
Main Features
1. The high-strength ceramic plunger ensures superior wear resistance and ultra long lifespan of the packing seal.
2. The leakage resistance performance far exceeds the national standard, thanks to the combination sealing structure of multiple plunger fillers.
3. The plunger directly acts on the medium, and the pump has high volumetric efficiency, ensuring accurate measurement of flow under different pressures.
4. High measurement accuracy, steady-state accuracy can reach ± 0.5%.
5. The use of a patented anti loosening adjustment lock structure ensures that the pump has ultra-high stability and accuracy.
6. The design features high-precision adjustable thread pairs, ensuring the pump has ultra-high reproducibility.
7. The modular design provides versatile adaptability to various working conditions, with options such as vertical, horizontal, and multi connected pump bodies available.
8. Durable and compact design, small pump head volume, with optimizable connections.
9. Adopting high-precision valve groups to ensure measurement accuracy, optional plate valves, ball valves, etc., and optional hydraulic ends such as Harbin C, carbon steel, and 20 # alloy.
Main Application
Various fields such as oil and chemical industry, chemical industry, electricity, metallurgy, etc., especially in high-precision and high-pressure fields
Technical Parameter
Main Components of Liquid End
Liquid End | Pump Head | Valve Body | Valve Seat | Valve Ball | Plunger | Packing Seal | O Ring |
SS316 | SS316 | SS316 | SS316 | SS304/ Ceramic | SS316+ Ceramic | PTFE/FPM+ graphite fiber | FTFE/PVDF |
SS304 | SS304 | SS304 | SS304 | SS304/ Ceramic | SS316+ Ceramic | PTFE/FPM+ graphite fiber | FTFE/PVDF |
Note: * is optional.
Model Identification Codes
Description | Series | Flow | Liquid End | Connection | Motor |
ID Code |
Series
Code | Description |
JZS | JZS series plunger metering pump |
2JZS | 2JZS series plunger metering pump |
3JZS | 3JZS series plunger metering pump |
Flow
Code | Max Flow | Max Pressure | Power | Plunger | SPM |
JZS2500/1.0 | 2541 | 1.0 | 3 | 115 | 131 |
JZS2500/0.8 | 0.8 | 2.2 | |||
JZS2500/0.5 | 0.5 | 1.5 | |||
JZS2300/1.1 | 2325 | 1.1 | 3 | 110 | |
JZS2300/0.9 | 0.9 | 2.2 | |||
JZS2300/0.6 | 0.6 | 1.5 | |||
JZS2100/1.2 | 2118 | 1.2 | 3 | 105 | |
JZS2100/1.0 | 1.0 | 2.2 | |||
JZS2100/0.7 | 0.7 | 1.5 | |||
JZS1900/1.4 | 1921 | 1.4 | 3 | 100 | |
JZS1900/1.1 | 1.1 | 2.2 | |||
JZS1900/0.8 | 0.8 | 1.5 | |||
JZS1700/1.5 | 1734 | 1.5 | 3 | 95 | |
JZS1700/1.2 | 1.2 | 2.2 | |||
JZS1700/0.8 | 0.8 | 1.5 | |||
JZS1550/1.7 | 1556 | 1.7 | 3 | 90 | |
JZS1550/1.4 | 1.4 | 2.2 | |||
JZS1550/1.0 | 1.0 | 1.5 | |||
JZS1350/2.0 | 1388 | 2.0 | 3 | 85 | |
JZS1350/1.6 | 1.6 | 2.2 | |||
JZS1350/1.1 | 1.1 | 1.5 | |||
JZS1200/2.2 | 1230 | 2.2 | 3 | 80 | |
JZS1200/1.8 | 1.8 | 2.2 | |||
JZS1200/1.2 | 1.2 | 1.5 | |||
JZS1050/2.5 | 1081 | 2.5 | 3 | 75 | |
JZS1050/2.0 | 2.0 | 2.2 | |||
JZS1050/1.4 | 1.4 | 1.5 | |||
JZS940/2.8 | 940 | 2.8 | 3 | 70 | |
JZS940/2.3 | 2.3 | 2.2 | |||
JZS940/1.6 | 1.6 | 1.5 | |||
JZS800/3.3 | 800 | 3.3 | 3 | 65 | |
JZS800/2.7 | 2.7 | 2.2 | |||
JZS800/1.8 | 1.8 | 1.5 | |||
JZS680/3.8 | 680 | 3.8 | 3 | 60 | |
JZS680/3.1 | 3.1 | 2.2 | |||
JZS680/2.1 | 2.1 | 1.5 | |||
JZS590/4.4 | 584 | 4.4 | 3 | 56 | |
JZS590/3.6 | 590 | 3.6 | 2.2 | ||
JZS590/2.5 | 595 | 2.5 | 1.5 | ||
JZS470/5.5 | 460 | 5.5 | 3 | 50 | |
JZS470/4.5 | 465 | 4.5 | 2.2 | ||
JZS470/3.1 | 475 | 3.1 | 1.5 | ||
JZS380/6.8 | 370 | 6.8 | 3 | 45 | |
JZS380/5.5 | 375 | 5.5 | 2.2 | ||
JZS380/3.8 | 385 | 3.8 | 1.5 | ||
JZS300/8.6 | 290 | 8.6 | 3 | 40 | |
JZS300/7 | 295 | 7.0 | 2.2 | ||
JZS300/4.8 | 300 | 4.8 | 1.5 | ||
JZS225/11.3 | 220 | 11.3 | 3 | 35 | |
JZS225/9.2 | 224 | 9.2 | 2.2 | ||
JZS225/6.3 | 226 | 6.3 | 1.5 | ||
JZS165/15.3 | 159 | 15.3 | 3 | 30 | |
JZS165/12.5 | 164 | 12.5 | 2.2 | ||
JZS165/8.5 | 166 | 8.5 | 1.5 | ||
JZS115/22 | 105 | 22 | 3 | 25 | |
JZS115/17.9 | 109 | 17.9 | 2.2 | ||
JZS115/12.2 | 115 | 12.2 | 1.5 | ||
JZS85/28.2 | 72 | 28.2 | 3 | 22 | |
JZS85/23 | 82 | 23 | 2.2 | ||
JZS85/15.7 | 86 | 15.7 | 1.5 | ||
JZS70/34.4 | 58 | 34.4 | 3 | 20 | |
JZS70/28 | 60 | 28 | 2.2 | ||
JZS70/19.1 | 70 | 19.1 | 1.5 | ||
JZS55/41.7 | 44 | 41.7 | 3 | 18 | |
JZS55/34 | 47 | 34 | 2.2 | ||
JZS55/23.2 | 55 | 23.2 | 1.5 |
Liquid End
Code | Description |
S | SS304 |
L | SS316 |
Z | Others on request |
Connection
Code | Description | JZS55-300 | JZS380-680 | JZS800-1350 | JZS1550-2500 |
F | Flange | DN15 | DN25 | DN32 | DN40 |
X | Others on request | ||||
Motor
Code | Description |
1 | 3PH 380V，50Hz，1440rpm，IP55/F |
2 | 1PH 220V，50Hz，1440rpm，IP55/F |
3 | Ex proof motor,3PH 380V，50Hz，1440rpm，IP55/F， Ex dⅡBT4 |
4 | VF motor, 3PH 380V，50Hz，1440rpm，IP55/F，VF Motor IC416 |
5 | Without motor, with IEC motor base |
6 | Other motor on request |
7 | Ex proof VF motor, 3PH 380V，50Hz，1440rpm，IP55/F，ExdⅡBT4，C416 |
Note: If adopt VF motor, power should be one level higher than the standard motor.

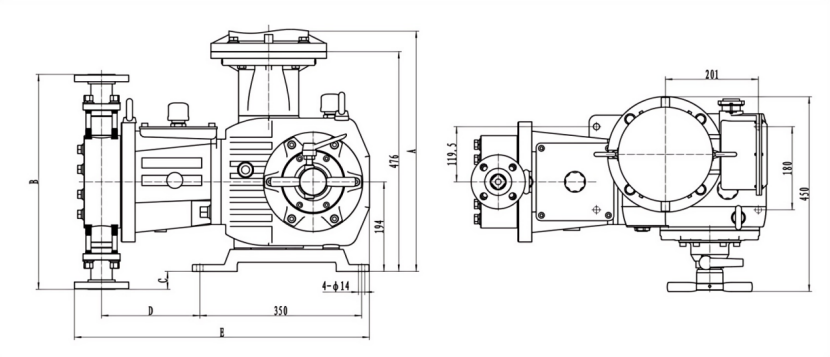

JZS serial Dimension
Code | Power | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
JZS2500/1.0 | 3 | 810 | 510 | 45 | 217.5 | 648 |
JZS2500/0.8 | 2.2 | 810 | ||||
JZS2500/0.5 | 1.5 | 790 | ||||
JZS2300/1.1 | 3 | 810 | ||||
JZS2300/0.9 | 2.2 | 810 | ||||
JZS2300/0.6 | 1.5 | 790 | ||||
JZS2100/1.2 | 3 | 810 | ||||
JZS2100/1.0 | 2.2 | 810 | ||||
JZS2100/0.7 | 1.5 | 790 | ||||
JZS1900/1.4 | 3 | 810 | ||||
JZS1900/1.1 | 2.2 | 810 | ||||
JZS1900/0.8 | 1.5 | 790 | ||||
JZS1700/1.5 | 3 | 810 | ||||
JZS1700/1.2 | 2.2 | 810 | ||||
JZS1700/0.8 | 1.5 | 790 | ||||
JZS1550/1.7 | 3 | 810 | ||||
JZS1550/1.4 | 2.2 | 810 | ||||
JZS1550/1.0 | 1.5 | 790 | ||||
JZS1350/2.0 | 3 | 810 | 466 | 39 | 212.5 | 639 |
JZS1350/1.6 | 2.2 | 810 | ||||
JZS1350/1.1 | 1.5 | 790 | ||||
JZS1200/2.2 | 3 | 810 | ||||
JZS1200/1.8 | 2.2 | 810 | ||||
JZS1200/1.2 | 1.5 | 790 | ||||
JZS1050/2.5 | 3 | 810 | 396 | 4 | 237.5 | 663 |
JZS1050/2.0 | 2.2 | 810 | ||||
JZS1050/1.4 | 1.5 | 790 | ||||
JZS940/2.8 | 3 | 810 | ||||
JZS940/2.3 | 2.2 | 810 | ||||
JZS940/1.6 | 1.5 | 790 | ||||
JZS800/3.3 | 3 | 810 | ||||
JZS800/2.7 | 2.2 | 810 | ||||
JZS800/1.8 | 1.5 | 790 | ||||
JZS680/3.8 | 3 | 810 | 376 | 6 | 230.5 | 660 |
JZS680/3.1 | 2.2 | 810 | ||||
JZS680/2.1 | 1.5 | 790 | ||||
JZS590/4.4 | 3 | 810 | ||||
JZS590/3.6 | 2.2 | 810 | ||||
JZS590/2.5 | 1.5 | 790 | ||||
JZS470/5.5 | 3 | 810 | ||||
JZS470/4.5 | 2.2 | 810 | ||||
JZS470/3.1 | 1.5 | 790 | ||||
JZS380/6.8 | 3 | 810 | ||||
JZS380/5.8 | 2.2 | 810 | ||||
JZS380/3.8 | 1.5 | 790 | ||||
JZS300/8.6 | 3 | 810 | 404 | 8 | 224.5 | 652 |
JZS300/7 | 2.2 | 810 | ||||
JZS300/4.8 | 1.5 | 790 | ||||
JZS225/11.3 | 3 | 810 | ||||
JZS225/9.2 | 2.2 | 810 | ||||
JZS225/6.3 | 1.5 | 790 | ||||
JZS165/15.3 | 3 | 810 | ||||
JZS165/12.5 | 2.2 | 810 | ||||
JZS165/8.5 | 1.5 | 790 | ||||
JZS115/22 | 3 | 810 | ||||
JZS115/17.9 | 2.2 | 810 | ||||
JZS115/12.2 | 1.5 | 790 | ||||
JZS85/28.2 | 3 | 810 | ||||
JZS85/23 | 2.2 | 810 | ||||
JZS85/15.7 | 1.5 | 790 | ||||
JZS70/34.4 | 3 | 810 | ||||
JZS70/28 | 2.2 | 810 | ||||
JZS70/19.1 | 1.5 | 790 | ||||
JZS55/41.7 | 3 | 810 | ||||
JZS55/34 | 2.2 | 810 | ||||
JZS55/23.2 | 1.5 | 790 |
