MainPerformanceParameters
Power: 28W
Power supply: single-phase 220V ± 10%, 50/60Hz
Simulated display accuracy: ± 0.25%

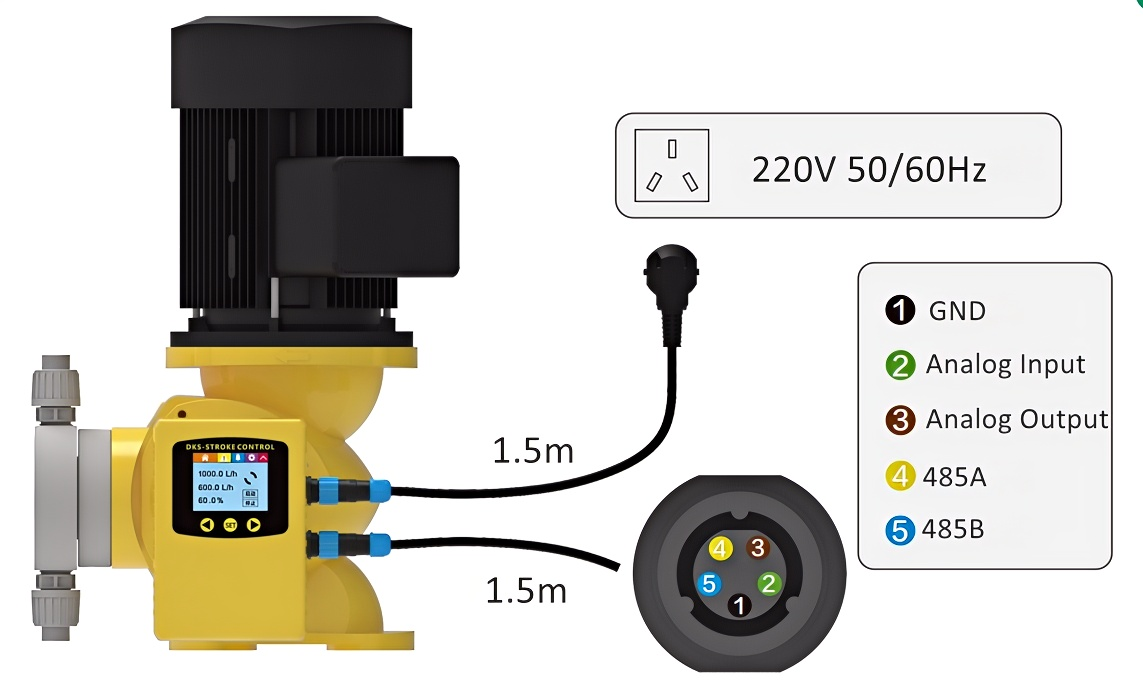

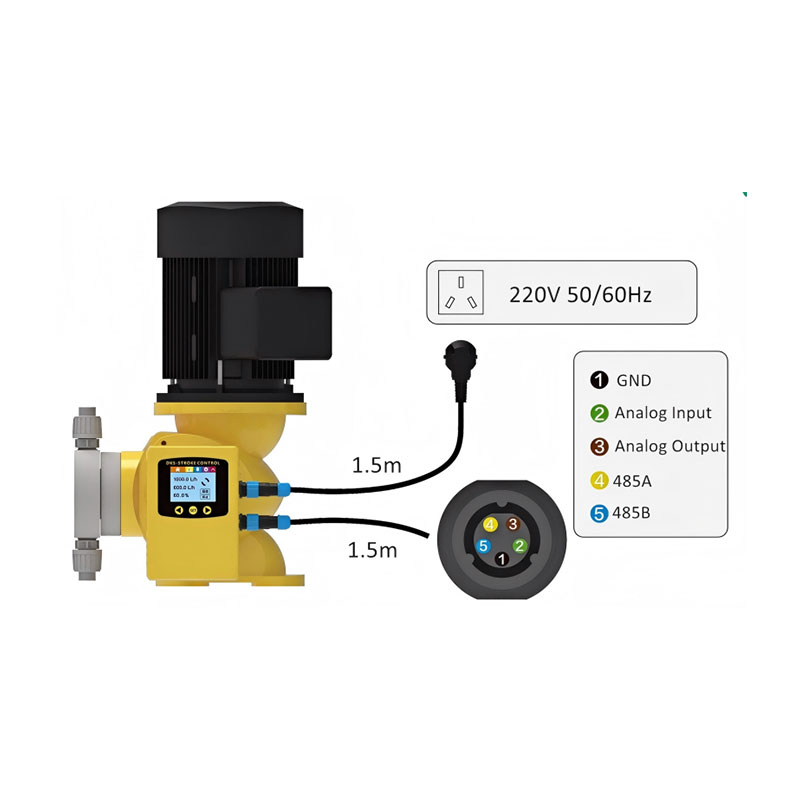

Control signal: 4-20mA (output load resistance ≤ 200 Ω)
Or RS485
Output signal: 4-20mA (output load resistance 100-500 Ω),
Output accuracy: 0.5% F.S
Adjustment range: 0-100% (10 turns), 0-100% adjustment time:
180sec
Working environment temperature:- 10℃-50℃
Protection level: IP65
Maintain torque: 11N m
MainFeatures
Weight: 2.6 kg
Explosion proof aluminum alloy shell+high-temperature sintered coating.
Adopting high-performance optocoupler feedback with a resolution of 0.5% and real-time position feedback.
Feedback with position retention function.

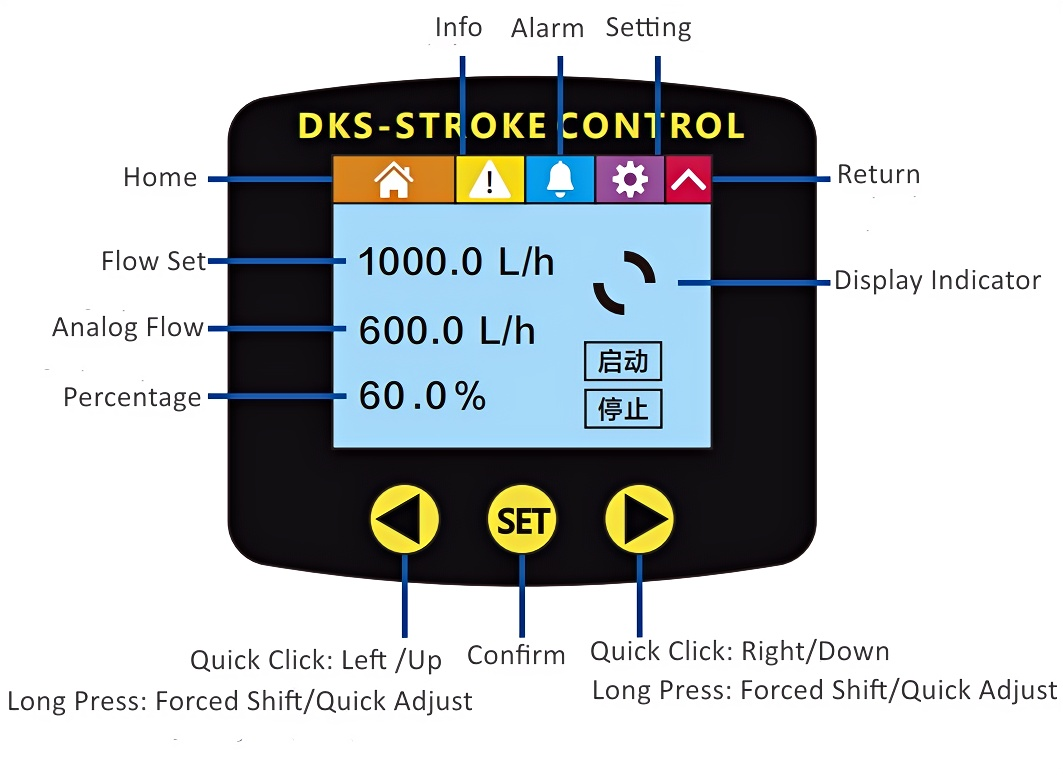

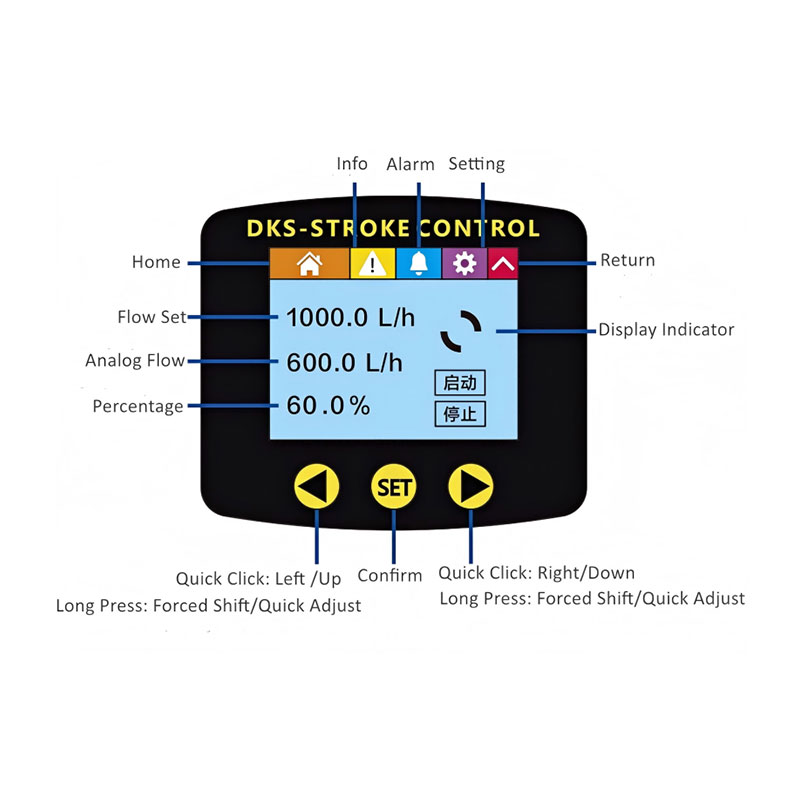

2.4-inch industrial color screen, 76800 high-resolution, capable of displaying preset flow, simulated flow, simulated percentage.
Equipped with self diagnostic function, it can complete alarm recording when a fault occurs.
Equipped with power-off self lock data protection function.
The device provides a visual window for easy monitoring and installation.
High degree integration, saving operation and maintenance costs, small size, high reliability.
Switching between Chinese and English.

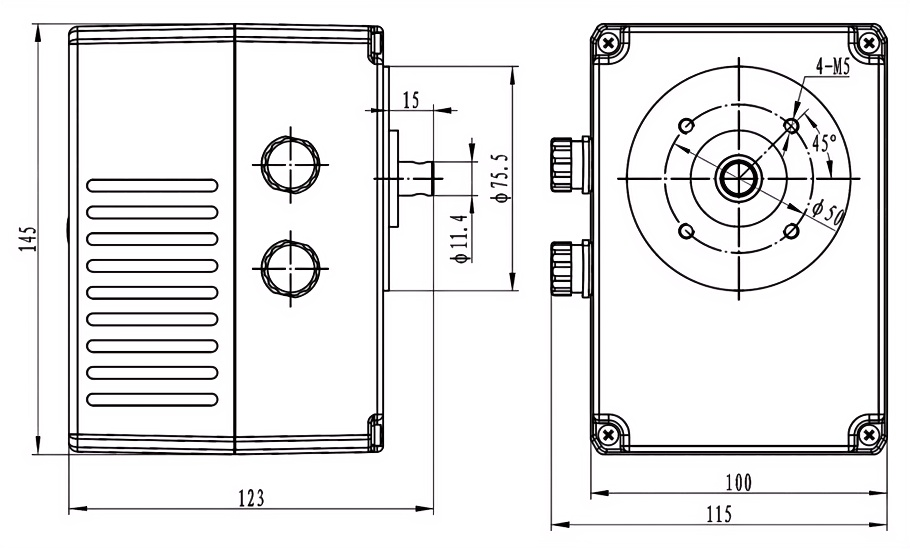

Stroke Controller Dimension
