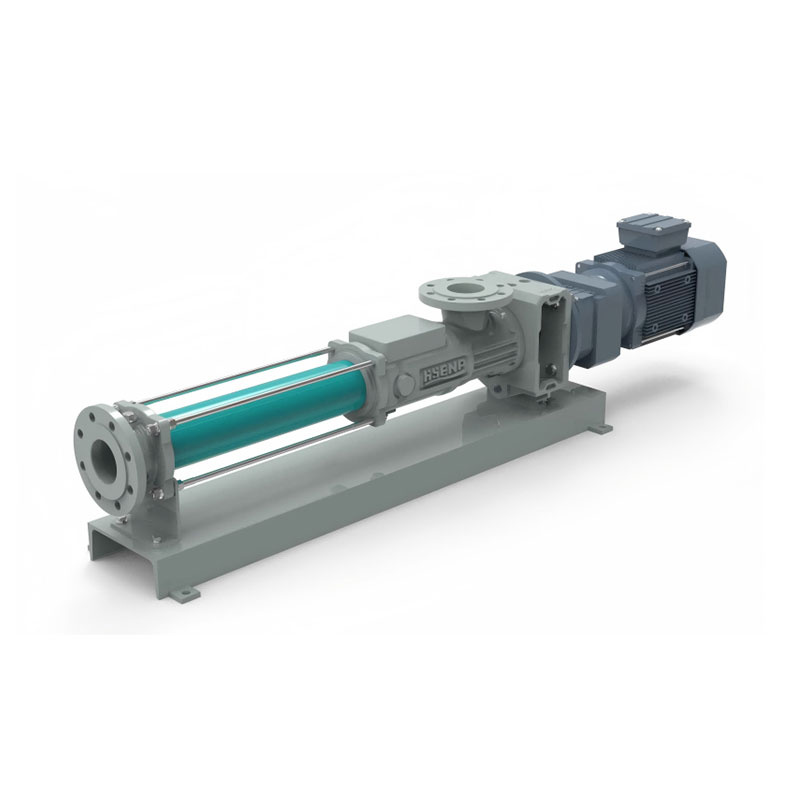

Main Features:
·Continuous low pulsation conveying
·Low mechanical vibration and noise
·The flow rate is proportional to the rotational speed, suitable for metering purposes
·Short body length, saving installation space
·The direct drive shaft is short, and the mechanical seal installation stability is high
Technical Parameters:
·The maximum flow rate can reach 400m3/h, and the maximum pressure can reach 24bar.
·Rotor - with wear-resistant and corrosion-resistant coating design, providing multiple material options such as 420, 304, 316, 316L, 2205, Cr12mov, etc.
·Stator - imported, specially formulated, providing NBR EPDM、FPM、 Multiple material options including wear-resistant NBR.
·Shaft seal - standard single end mechanical seal, low friction resistance, low and high temperature resistance, corrosion resistance, wear resistance, stable and reliable sealing effect. According to the actual working conditions, other types of single/double end mechanical seals, containerized or other types of mechanical seals can also be used, and the sealing of the packing can also be improved.
·Reducer - comes standard with R series helical gear hard tooth surface reducer, which has high load-bearing capacity, high efficiency, and long service life. It can be selected according to the customer's specified brand.
·Motor - Provides various forms of options such as three-phase AC, three-phase frequency conversion, three-phase explosion-proof, and three-phase frequency conversion explosion-proof. It can be selected according to the customer's specified brand and offers high-efficiency motor options.
Application:
Transportation of various low and high viscosity media with or without solid particles in wastewater, chemicals, environmental protection, and chemical industries.
