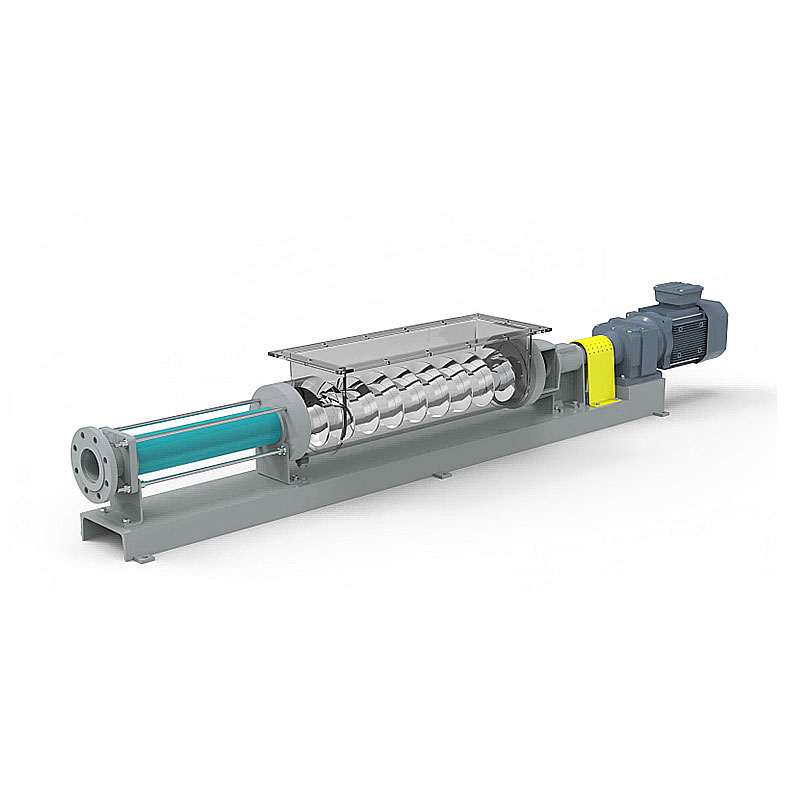

Main Features:
·Continuous low pulsation conveying.
·Rectangular hopper inlet, hopper size can be adjusted according to actual application.
·The connecting rod is equipped with a spiral horizontal propulsion device to prevent material accumulation at the pump inlet.
Technical Parameters:
·The maximum flow rate can reach 100m3/h, and the maximum pressure can reach 48bar
·Rotor - with wear-resistant and corrosion-resistant coating design, providing multiple material options such as 420, 304, 316, 316L, 2205, Cr12mov, etc
·Stator - imported, specially formulated, providing NBR EPDM、FPM、 Multiple material options including wear-resistant NBR
·Shaft seal - standard single end mechanical seal, low friction resistance, low and high temperature resistance, corrosion resistance, wear resistance, stable and reliable sealing effect. According to the actual working conditions, other types of single/double end mechanical seals, containerized or other types of mechanical seals can also be used, and the sealing of the packing can also be improved.
·Reducer - comes standard with R series helical gear hard tooth surface reducer, which has high load-bearing capacity, high efficiency, and long service life. It can be selected according to the customer's specified brand.
·Motor - Provides various forms of options such as three-phase AC, three-phase frequency conversion, three-phase explosion-proof, and three-phase frequency conversion explosion-proof. It can be selected according to the customer's specified brand and offers high-efficiency motor options.
·Rectangular hopper - offers two types of hoppers, O-type and F-type, depending on the actual application.
Application:
Medium transportation with extremely poor fluidity, solid content of 20% -30%, and no bridging phenomenon in environmental protection, chemical industry, and chemical industry
